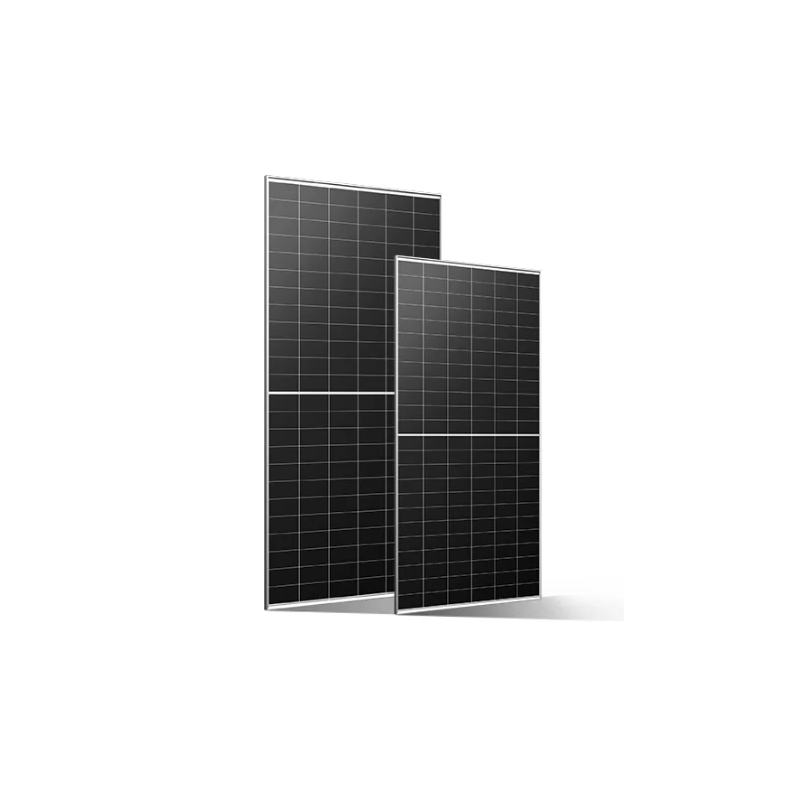

AIKO A600-MAH72Mw 1500V Silver Frame
Module Power: 600W
Cell Type: N-type
Colour Frame: Silver Frame
Module type: Monofacial
Series Name: N-Type ABC White Hole Series AIKO-A-MAH72Mw 600-620
Series Power Range (Wp): 600-620
Model Name: AIKO-A600-MAH72Mw
Warranty Years: 15
Primary (Years, % Output Power): 30; 88.85
Voltage at Maximum Power, Vmpp (V) at STC: 44.81
Current at Maximum Power, Impp (A) at STC: 13.4
Open Circuit Voltage, Voc (V) at STC: 53.29
Short Circuit Current, Isc (A) at STC: 13.92
Panel Efficiency (%) at STC: 23.2
Power Tolerance, - (%) at STC: 3
Temperature coefficient of Pmax (%/°C): -0.29
Temperature coefficient of Voc (%/°C): -0.24
Temperature coefficient of Isc (%/°C): 0.05
Maximum System Voltage (V): 1500
Series Fuse Rating (A): 25
Cell Number: 144
Glass Type: Anti-reflection coating, tempered
Glass Thickness (mm): 3.2
Frame Type: Anodized Aluminum Alloy
Junction Box Diodes: 3
Junction Box Protection Class: IP68
Connector Type: MC4
Cable Crosssection (mm²): 4
Cable Length (mm): 350
Height (mm): 2278
Width (mm): 1134
Depth (mm): 35
Weight (kg): 28.2
Available quantity: 3100 pieces
Min. order quantity: 1 container (620 pieces)
Delivery: 10 days
Premium Appearance; No grid lines on the front; Higher Power Output; Higher efficiency: 24.0%; Lower degradation: 1 Year<1.0%, 2-30 Year=0.35%; Better Temperature Coefficient: -0.29% / °C Optimized Balance of System (BOS); Significant savings on mounting structure, cabling, and labour cost
