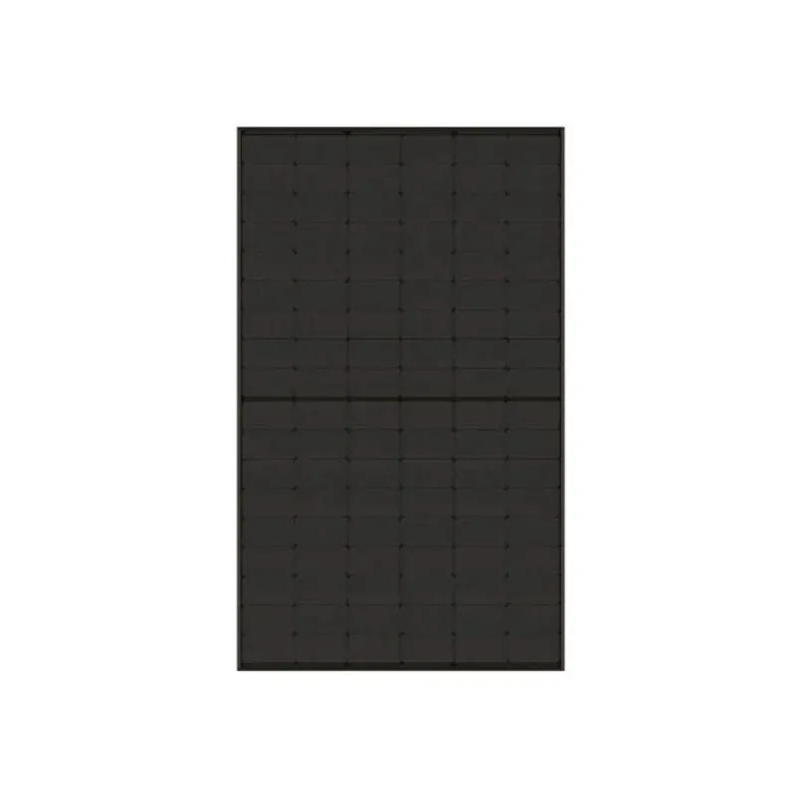

DAH Solar DHN-54R20/DG(BB) 455 1500V Full Black
Module Power: 455W
Cell Type: N-Type
Colour Frame: Full Black
Module type: Bifacial
Series Name: DHN-54R20/DG(BB) 450-465W
Series Power Range (Wp): 450-465
Model Name: DHN-54R20/DG(BB) 455
Warranty Years: 25
Primary (Years, % Output Power): 10; 95.4
Secondary (Years, % Output Power): 30; 87.4
Voltage at Maximum Power, Vmpp (V) at STC: 33.7
Current at Maximum Power, Impp (A) at STC: 13.5
Open Circuit Voltage, Voc (V) at STC: 39.6
Short Circuit Current, Isc (A) at STC: 14.48
Panel Efficiency (%) at STC: 22.77
Temperature coefficient of Pmax (%/°C): -0.29
Temperature coefficient of Voc (%/°C): -0.25
Temperature coefficient of Isc (%/°C): 0.046
Maximum System Voltage (V): 1500
Series Fuse Rating (A): 30
Cell Number: 108
Glass Type: High Transmission, Antireflection Coating
Glass Thickness (mm): 2
Junction Box Diodes: 3
Junction Box Protection Class: IP68
Connector Type: MC4
Cable Cross section (mm²): 4
Cable Length (mm): 300/200
Height (mm): 1762
Width (mm): 1134
Depth (mm): 30
Weight (kg): 23.9
Available quantity: 2808 pieces
Min. order quantity: 1 container (936 pieces)
Delivery: 10 days
No-Busbar (OBB) Technology, shorten 40% of the transmission distance. Reduces losses & improving conversion efficiency TOPCon cells double-sided rate up to 85% and more back power generation by 5-25% Double-glass Technology, higher encapsulation blocking and mechanical strength Higher power, longer service life, linear power warranty for 30 years TOPCon cells, lower attenuation, better temperature coefficient & dim light performance
Module Power: 455W
Cell Type: N-Type
Colour Frame: Full Black
Module type: Bifacial
Series Name: DHN-54R20/DG(BB) 450-465W
Series Power Range (Wp): 450-465
Model Name: DHN-54R20/DG(BB) 455
Warranty Years: 25
Primary (Years, % Output Power): 10; 95.4
Secondary (Years, % Output Power): 30; 87.4
Voltage at Maximum Power, Vmpp (V) at STC: 33.7
Current at Maximum Power, Impp (A) at STC: 13.5
Open Circuit Voltage, Voc (V) at STC: 39.6
Short Circuit Current, Isc (A) at STC: 14.48
Panel Efficiency (%) at STC: 22.77
Temperature coefficient of Pmax (%/°C): -0.29
Temperature coefficient of Voc (%/°C): -0.25
Temperature coefficient of Isc (%/°C): 0.046
Maximum System Voltage (V): 1500
Series Fuse Rating (A): 30
Cell Number: 108
Glass Type: High Transmission, Antireflection Coating
Glass Thickness (mm): 2
Junction Box Diodes: 3
Junction Box Protection Class: IP68
Connector Type: MC4
Cable Cross section (mm²): 4
Cable Length (mm): 300/200
Height (mm): 1762
Width (mm): 1134
Depth (mm): 30
Weight (kg): 23.9
Available quantity: 2808 pieces
Min. order quantity: 1 container (936 pieces)
Delivery: 10 days
