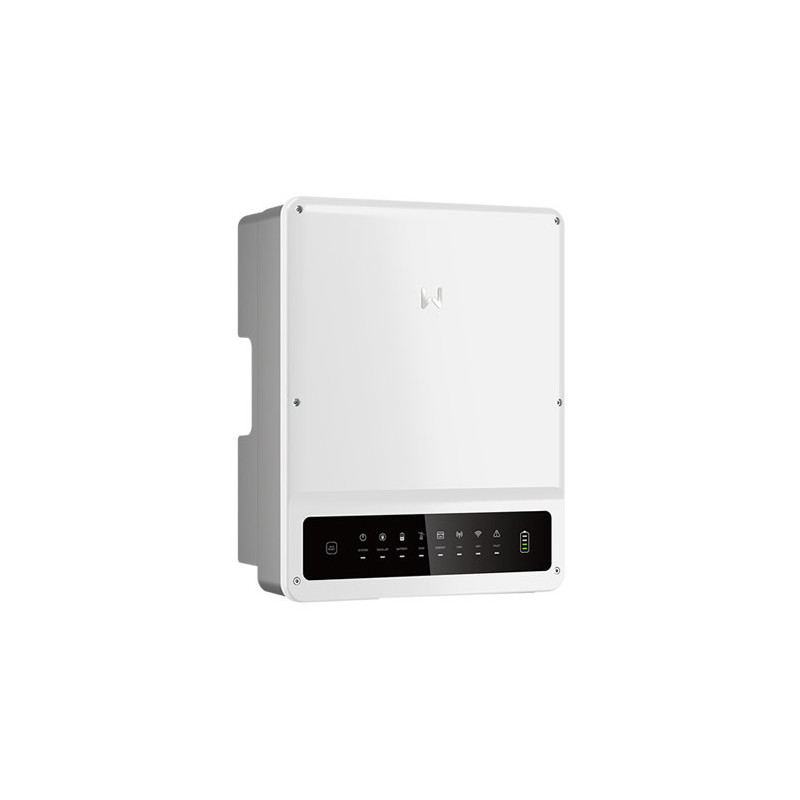

Goodwe GW10KN-ET PLUS+
Inverter Type: Hybrid
MPPT: 2
Inverter Power: 10 kW
Number of phases: 3
Series Name: ET PLUS+ Series
Series AC Power Range (kW): 5-10
Model Name: GW10K-ET PLUS
Product Warranty (Years): 5
Maximum DC Power (kW): 15
Max. DC Voltage (V): 1000
Max. DC Current (A): 12.5
Strings per single MPPT: 1
DC Inputs: 2
Maximum AC Power (kW): 11
Output AC Voltage Range (V): 0-300
Nominal AC Voltage (V): 400/380
Maximum AC Current (A): 16.5
Frequency Range (Hz): 45-65
Frequency (Hz): 50/60
Power Factor: ~1 (Adjustable from 0.8 leading to 0.8 lagging)
Maximum Efficiency (%): 98.2
Euro Efficiency (%): 97.5
Operating Temperature Range (°C): -35 ~ +60
Protection Class: IP65
Display: LED
Height (mm): 516
Width (mm): 415
Depth (mm): 180
Weight (kg): 24
Available quantity: 150 pieces
Min. order quantity: 5 pieces
Delivery: 10 days
Operating at the heart of the integrated PV power and storage system, our ET PLUS+ hybrid inverters are designed to maximise energy output, enhance self-consumption, realise peak-shaving and facilitate backup power. With intelligent load controls and wide battery voltage range, the set-up can be flexibly configurated to meet individual needs across the residential ecosystem. Combine with GoodWe battery system Lynx Home F for a safe and reliable energy storage solution
