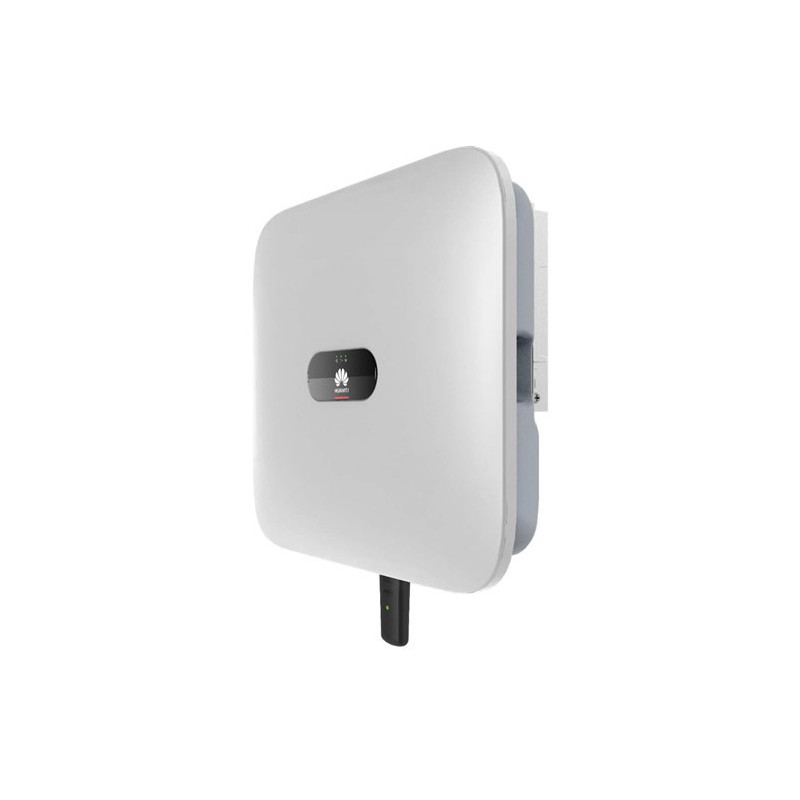

Huawei SUN2000-10KTL-M1 3PH
Inverter Type: On-grid
MPPT: 2
Inverter Power: 10 kW
Number of phases: 3
Series Name: SUN2000-3/4/5/6/8/10KTL-M0/M1
Series AC Power Range (kW): 4.5-15
Model Name: SUN2000-10KTL-M1
Product Warranty (Years): 10
Maximum DC Power (kW): 15
Max. DC Voltage (V): 1100
Max. DC Current (A): 11
DC Inputs: 1
Maximum AC Power (kW): 11
Output AC Voltage Range (V): 220-400
Nominal AC Voltage (V): 220/380, 230/400
Maximum AC Current (A): 16.9
Frequency (Hz): 50/60
Power Factor: 0.8 leading - 0.8 lagging
Maximum Efficiency (%): 98.6
Euro Efficiency (%): 98.1
Operating Temperature Range (°C): -25 ~ +60
Protection Class: IP65
Display: LED
Height (mm): 525
Width (mm): 470
Depth (mm): 146.5
Weight (kg): 17
Available quantity: 20 pieces
Min. order quantity: 5 pieces
Delivery: 10 days
Higher Revenue Max. efficiency 98.6%; Simple & Easy 17 kg; Battery Ready Plug & Play battery interface; Safe and Reliable Arc Fault Protection
