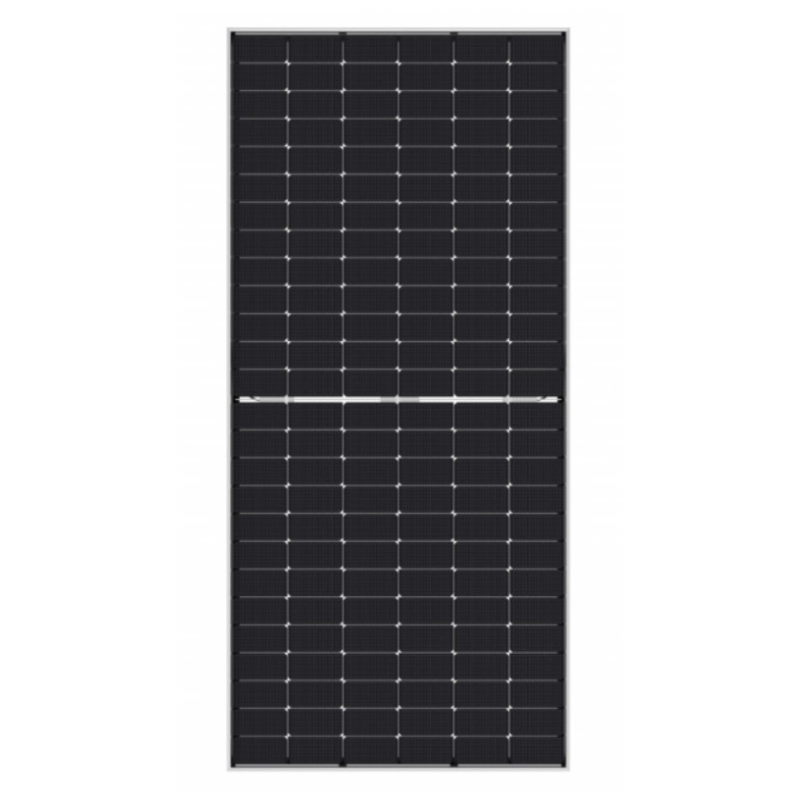

Jinko JKM625N-78HL4-BDV 1500V Silver Frame
Module Power: 625W
Cell Type: N-Type
Colour Frame: Silver Frame
Module type: Bifacial
Series Name: JKM625-650N-78HL4-BDV-F9-EN
Series Power Range (Wp): 625-650
Model Name: JKM625N-78HL4-BDV
Warranty Years: 12
Primary (Years, % Output Power): 30; 87.4
Voltage at Maximum Power, Vmpp (V) at STC: 47.54
Current at Maximum Power, Impp (A) at STC: 13.15
Open Circuit Voltage, Voc (V) at STC: 56.95
Short Circuit Current, Isc (A) at STC: 13.8
Panel Efficiency (%) at STC: 22.36
Temperature coefficient of Pmax (%/°C): -0.29
Temperature coefficient of Voc (%/°C): -0.25
Temperature coefficient of Isc (%/°C): 0.045
Maximum System Voltage (V): 1500
Series Fuse Rating (A): 30
Cell Number: 156
Glass Type: Anti-reflection Coating
Glass Thickness (mm): 2+2
Frame Type: Anodized Aluminum Alloy
Junction Box Protection Class: IP68
Connector Type: JK03M/MC4/Others
Cable Length (mm): (+):400 mm ,(-):200 mm or Customized Length
Height (mm): 2465
Width (mm): 1134
Depth (mm): 30
Weight (kg): 34
Available quantity: 5760 pieces
Min. order quantity: 5 containers (2880 pieces)
Delivery: 10 days
N-type Technology N-type modules with Tunnel Oxide Passivating Contacts (TOPcon) technology offer lower LID/LETID degradation and better low light performance. HOT 3.0 Technology N-type modules with JinkoSolar's HOT 3.0 technology offer better reliability and efficiency. Dual-Sided Power Generation Dual-sided power generation gain increases with backside exposure to light, significantly reducing LCOE. Mechanical Load Enhanced Certified to withstand: 5400 Pa front side max static test load 2400 Pa rear side max static test load SMBB Technology Better light trapping and current collection to improve module power output and reliability. FID Anti-PID Guarantee Minimizes the chance of degradation caused by PID phenomena through optimization of cell production technology and material control.
