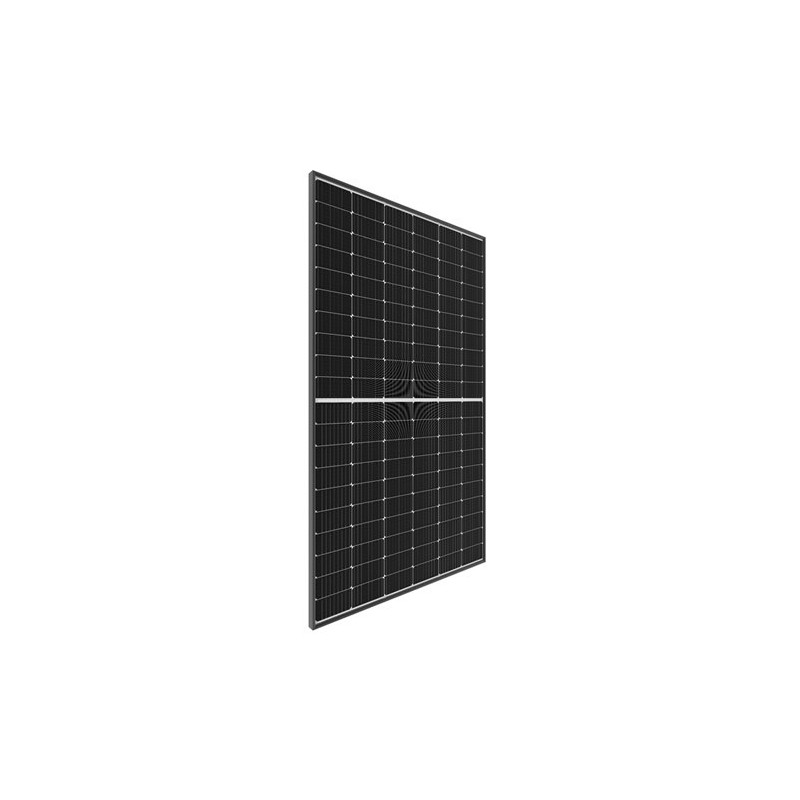

LONGi LR5-66HTH 530M 1500V Black Frame

Module Power: 530 W

Cell Type: Monocrystalline

Colour Frame: Black Frame

Module type: Monofacial

Series Name: Hi-MO X6 Explorer LR5-66HTH 520-540M

Series Power Range (Wp): 520-540

Model Name: LR5-66HTH-530M

Warranty Years: 15

Secondary (Years, % Output Power): 25; 88.9

Voltage at Maximum Power, Vmpp (V) at STC: 40.22

Current at Maximum Power, Impp (A) at STC: 13.18

Open Circuit Voltage, Voc (V) at STC: 48.57

Short Circuit Current, Isc (A) at STC: 14

Panel Efficiency (%) at STC: 22.3

Power Tolerance, - (%) at STC: 3

Temperature coefficient of Pmax (%/°C): -0.29

Temperature coefficient of Voc (%/°C): -0.23

Temperature coefficient of Isc (%/°C): 0.05

Maximum System Voltage (V): 1500

Series Fuse Rating (A): 25

Cell Number: 132

Glass Type: Coated, tempered

Glass Thickness (mm): 3.2

Frame Type: Anodized Aluminum Alloy

Junction Box Protection Class: IP68

Cable Cross section (mm²): 4

Cable Length (mm): 1400

Height (mm): 2094

Width (mm): 1134

Depth (mm): 35

Weight (kg): 26

Available quantity: 3410 pieces

Minimum order quantity: 1 container (682 pieces)

Delivery: 10 days
