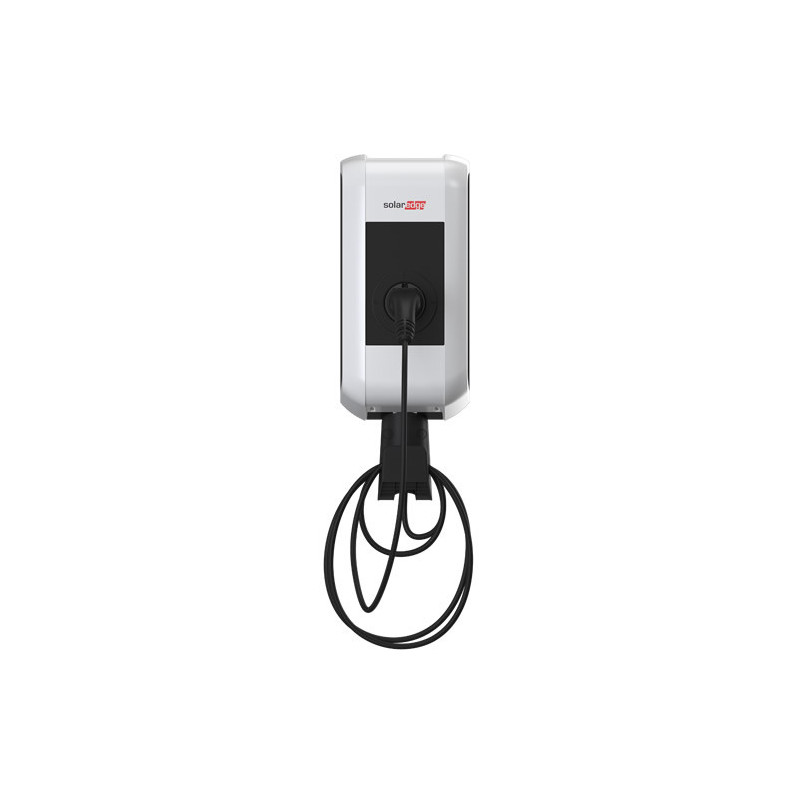

SolarEdge EV Charger-RFID-MID
Charger Type: AC
Maximum output power (kW): 4.6/7.4/11/22
No. of Phases: 1/3
Connection: Socket
Type of Socket: Type 2: up to 32 A / 400 V AC in accordance with EN 62196-1 and VDE-AR-E 2623-2-3
Series Name: SolarEdge EV Charger
Model Name: SolarEdge EV Charger-RFID-MID
Warranty Years: 3
Mains supply types: TT/NT/IT
Nominal voltage (V): 3x230/401
Nominal current (configurable) (A): 10/13/16/20/25/32 Single or Three Phase
Power consumption for standby (W): 4
Communication: Ethernet, WLAN, WiFi
Suitable for outdoor mounting: Yes
Residual current device: ≥ 6 (characteristic in accordance with IEC 62955, < 10 s)
Supply line cable cross-section (mm²): Rigid / flexible 0.2 – 16, Flexible with wire end sleeve with / without plastic sleeve 0.25 – 10
Length (mm): 142
Width (mm): 240
Height (mm): 643
Weight (kg): 7.8
Available quantity: 70 pieces
Minimum order quantity: 5 pieces
Delivery: 10 days
Utilizes excess PV to charge EV from the sun, for reduced homeowner electricity bills Charge smarter with our custom scheduling feature, allowing automatic charging during low-rate periods, including at night Suitable for single and three phase installations, for both indoor and outdoor use Control and monitoring via the mySolarEdge app, including remote operations, charging schedules, and charging history Integrated optional RFID card authentication and MID meter
