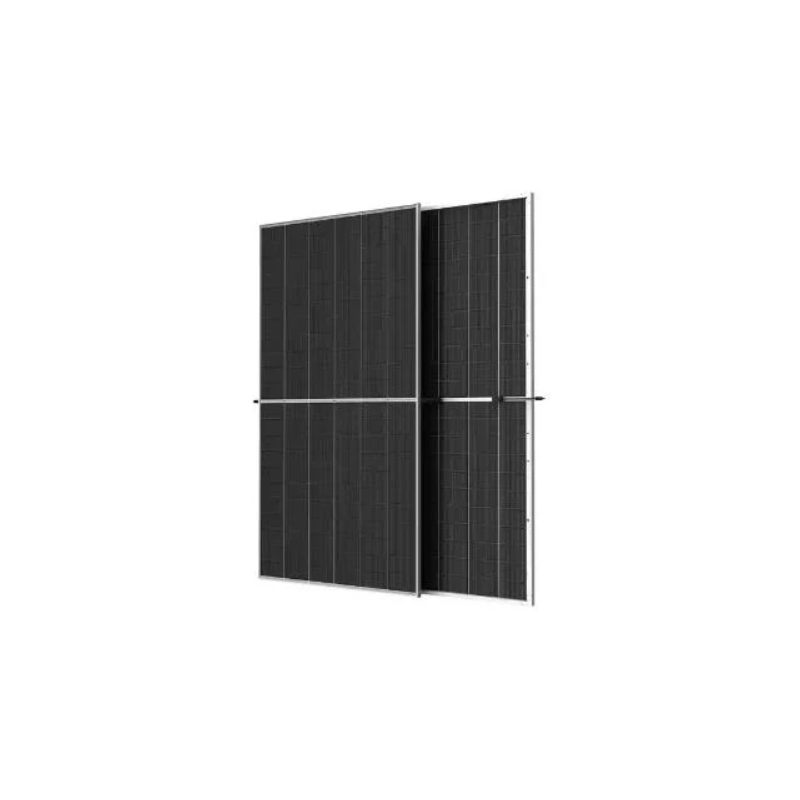

Trina TSM-NEG21C.20 700 1500V Silver Frame TS4

Module Power: 700W

Cell Type: N-type

Colour Frame: Silver Frame

Module type: Bifacial

Series Name: Vertex N TSM-NEG21C.20 675-700

Series Power Range (Wp): 675-700

Model Name: TSM-NEG21C.20 700

Warranty Years: 12

Primary (Years, % Output Power): 30; 87.4

Voltage at Maximum Power, Vmpp (V) at STC: 40.5

Current at Maximum Power, Impp (A) at STC: 17.29

Open Circuit Voltage, Voc (V) at STC: 48.6

Short Circuit Current, Isc (A) at STC: 18.32

Panel Efficiency (%) at STC: 22.5

Power Tolerance, - (%) at STC: 0.5

Temperature (°C) at NOCT: 43±2

Operating Temperature Range (°C): -40~85

Temperature coefficient of Pmax (%/°C): -0.3

Temperature coefficient of Voc (%/°C): -0.24

Temperature coefficient of Isc (%/°C): 0.04

Maximum System Voltage (V): 1500

Series Fuse Rating (A): 35

Cell Number: 132

Glass Type: Anti-reflection coating

Glass Thickness (mm): 2

Frame Type: Anodized Aluminum Alloy

Junction Box Protection Class: IP68

Connector Type: TS4

Cable Crosssection (mm²): 4

Cable Length (mm): 280

Height (mm): 2384

Width (mm): 1303

Depth (mm): 33

Weight (kg): 38.3

Available quantity: 5940 pieces

Min. order quantity: 1 container (594 pieces)

Delivery: 10 days

High customer value • Lower LCOE (levelized cost of energy), reduced BOS (balance of system) cost, shorter payback time • Guaranteed first year and annual degradation • High module power; high string power and low voltage design High power up to 700W • Up to 22.5% module efficiency with high density interconnect technology •Multi-busbar technology for better light trapping effect, lower series resistance and improved current collection High reliability • Minimized micro-cracks with innovative non-destructive cutting technology • Ensured PID resistance through cell process and module material control •Resistant to harsh environments such as salt, ammonia, sand, high temperature and high humidity areas • Mechanical performance up to 5400 Pa positive load and 2400 Pa negative load High energy yield • Excellent product bifaciality and low irradiation performance, validated by 3rd party • Extremely low 1% first year degradation and 0.4% annual power attenuation • The unique design provides optimized energy production under inter-row shading conditions • Lower temperature coefficient (-0.30%) and operating temperature • Up to 30% additional power gain from back side depending on albedo
