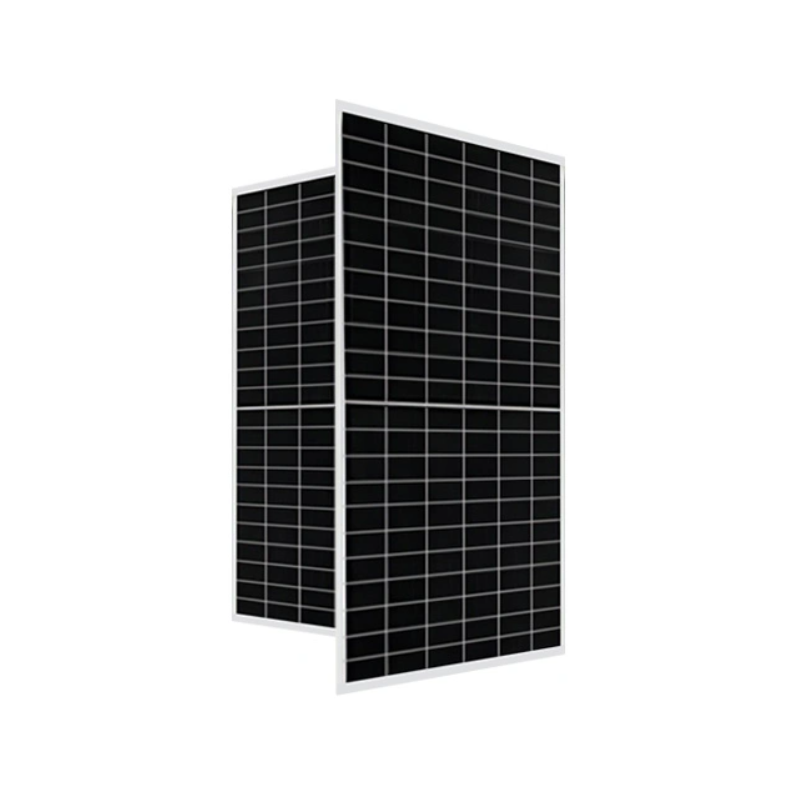

JA Solar JAM66D45 600 LB Silver Frame
Module Power: 600W
Cell Type: N-type
Colour Frame: Silver Frame
Module type: Bifacial
Series Name: Deep Blue 4.0 X JAM66D45 590-615 LB
Series Power Range (Wp): 590-615
Model Name: JAM66D45 600 LB
Warranty Years: 12
Primary (Years, % Output Power): 30; 84.7
Voltage at Maximum Power, Vmpp (V) at STC: 39.44
Current at Maximum Power, Impp (A) at STC: 15.21
Open Circuit Voltage, Voc (V) at STC: 47.70
Short Circuit Current, Isc (A) at STC: 15.95
Panel Efficiency (%) at STC: 22.2
Power Tolerance, - (%) at STC: 1
Temperature coefficient of Pmax (%/°C): -0.300
Temperature coefficient of Voc (%/°C): -0.260
Temperature coefficient of Isc (%/°C): 0.046
Maximum System Voltage (V): 1500
Series Fuse Rating (A): 35
Cell Number: 132
Glass Type: Double
Glass Thickness (mm): 2
Junction Box Diodes: 3
Junction Box Protection Class: IP68
Connector Type: MC4
Cable Crosssection (mm²): 4
Cable Length (mm): 1500
Height (mm): 2382
Width (mm): 1134
Depth (mm): 30
Weight (kg): 33.1
Available quantity: 5040 pieces
Min. order quantity: 1 container (720 pieces)
Delivery: 10 days
Higher power generation better LCOE n-type with very Lower LID Better Temperature Coefficient Better low irradiance response 12-year product warranty 30-year linear power output warranty n-type Bifacial Double Glass High Efficiency Mono Module JAM66D45 LB
