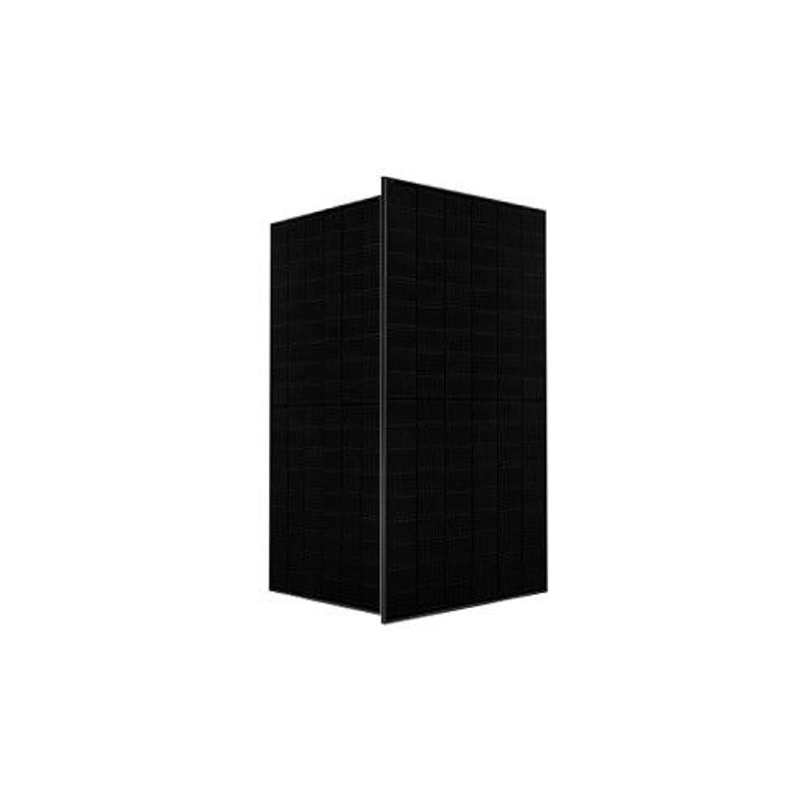

JA Solar JAM54D41 440/LB Full Black
Module Power: 440 W
Cell Type: N-type
Colour Frame: Full Black
Module type: Bifacial
Series Name: Deep Blue 4.0 X JAM54D41 430-455/LB
Series Power Range (Wp): 430-455
Model Name: JAM54D41 440/LB
Warranty Years: 12
Primary (Years, % Output Power): 30, 84.7
Voltage at Maximum Power, Vmpp (V) at STC: 32.47
Current at Maximum Power, Impp (A) at STC: 13.55
Open Circuit Voltage, Voc (V) at STC: 38.90
Short Circuit Current, Isc (A) at STC: 14.31
Panel Efficiency (%) at STC: 22.0
Power Tolerance, - (%) at STC: 1
Temperature coefficient of Pmax (%/°C):-0.300
Temperature coefficient of Voc (%/°C): -0.260
Temperature coefficient of Isc (%/°C): 0.046
Maximum System Voltage (V): 1500
Series Fuse Rating (A): 30
Cell Number: 108
Glass Type: Double
Glass Thickness (mm): 3.2
Junction Box Diodes: 3
Junction Box Protection Class: IP68
Connector Type: MC4
Cable Crosssection (mm²): 4
Cable Length (mm): 1200
Height (mm): 1762
Width (mm): 1134
Depth (mm): 30
Weight (kg): 22
Available quantity: 5760 pieces
Minimum order quantity: 1 container (720 pieces)
Delivery: 10 days
Higher power generation; better LCOE n-type with very Lower LID; Better Temperature Coefficient; Better low irradiance response; 12-year product warranty; 30-year linear power output warranty; N-Type; Bifacial; Double Glass; High Efficiency Mono Module JAM54D41 LB 430-462
