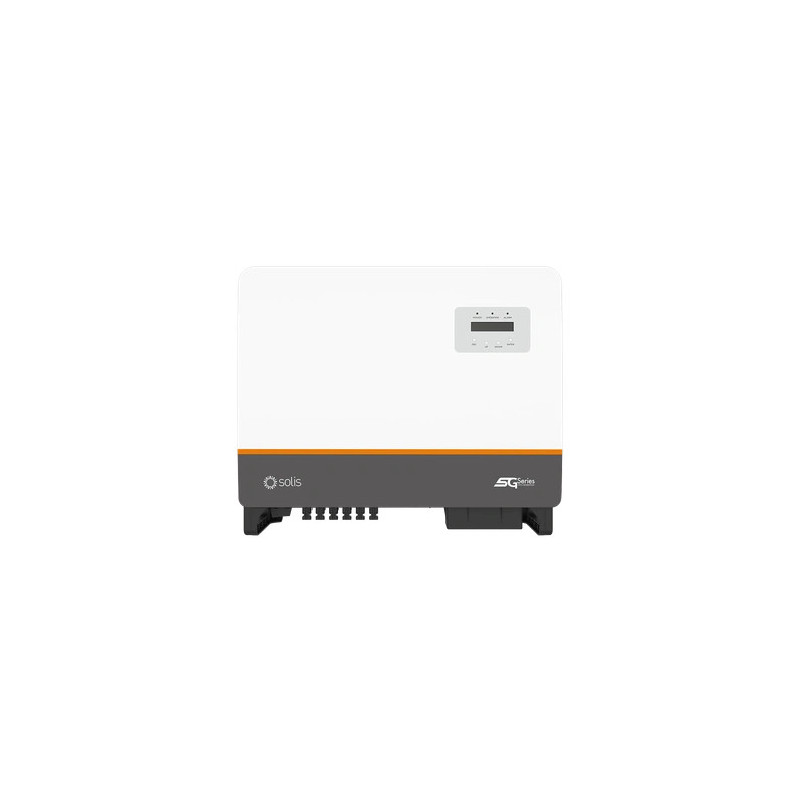

Solis S5-GC40K
Inverter Type: On-grid
MPPT: 4
Inverter Power: 40 kW
Number of phases: 3
Series Name: S5-GC(25-40)K
Series AC Power Range (kW): 25-40
Model Name: S5-GC40K
Product Warranty (Years): 5
Maximum DC Power (kW): 60
Max. DC Voltage (V): 1100
Max. DC Current (A): 32/32/32
Strings per single MPPT: 8
DC Inputs: 6
Connectors: MC4
Maximum AC Power (kW): 44
Nominal AC Voltage (V): 220/380, 230/400
Maximum AC Current (A): 66.9
Nominal AC Current (A): 60.8/57.7
Frequency (Hz): 50/60
Power Factor: >0.99 (0.8 leading - 0.8 lagging)
Maximum Efficiency (%): 98.7
Euro Efficiency (%): 98.3
Operating Temperature Range (°C): -25~60
Protection Class: IP66
Display: LCD
Height (mm): 629
Width (mm): 647
Depth (mm): 252
Weight (kg): 37
Available quantity: 15 pieces
Minimum order quantity: 5 pieces
Delivery: 10 days
Max. efficiency 98.7%, String current up to 16A, 3/4 MPPT design, supports multiple orientation system design; Smart - Supports export power control, Intelligent string monitoring, smart I-V curve scan, Supports RS485, WiFi, GPRS; Safe - IP66, AFCI protection, Intelligent redundant fan-cooling; Economic - Supports GPRS/WiFi communication, >150% DC/AC ratio, Supports high power modules for lower installation costs, Supports aluminium wire access to reduce cost
