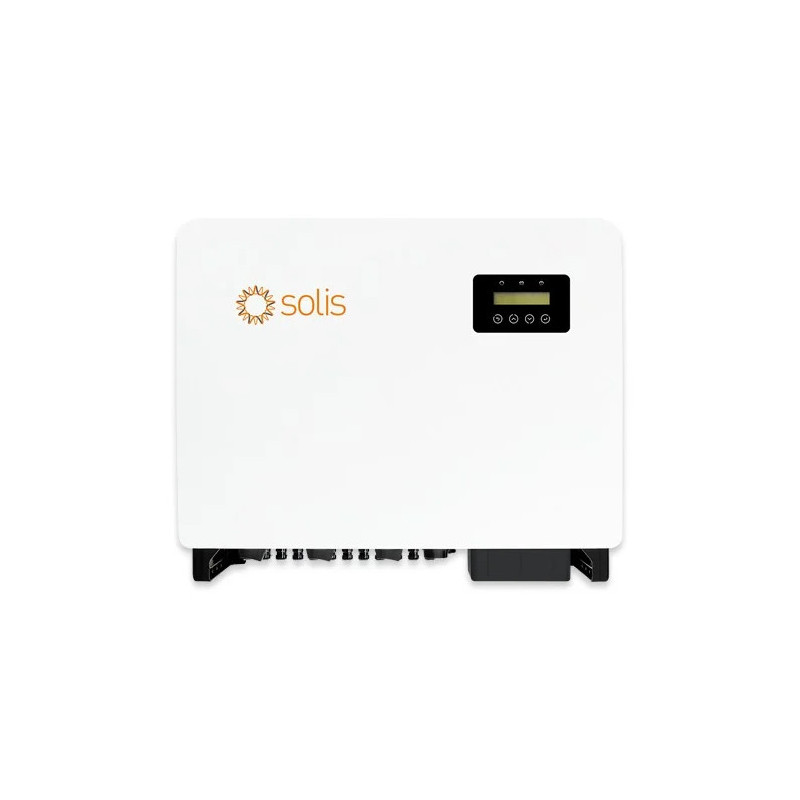

Solis S5-GC50K
Inverter Type: On-grid
MPPT: 5
Inverter Power: 50 kW
Number of phases: 3
Series Name: Solis-S5-GC(50-60)K
Series AC Power Range (kW): 50-60
Model Name: S5-GC50K
Product Warranty (Years): 5
Max. DC Voltage (V): 1100
Max. DC Current (A): 160
Strings per single MPPT: 10
DC Inputs: 10
Connectors: MC4
Maximum AC Power (kW): 55
Nominal AC Voltage (V): 220/380, 230/400
Maximum AC Current (A): 83.6
Nominal AC Current (A): 76/72.2
Frequency (Hz): 50
Power Factor: >0.99 (0.8 leading - 0.8 lagging)
Maximum Efficiency (%): 98.7
Euro Efficiency (%): 98.3
Operating Temperature Range (°C): -25 ~ +60
Protection Class: IP65
Display:LCD
Height (mm): 578
Width (mm): 691
Depth (mm): 338
Weight (kg): 54.5
Available quantity: 20 pieces
Minimum order quantity: 5 pieces
Delivery: 10 days
Max. efficiency 98.7% - String current up to 16A - 5/6 MPPT design, supports multiple orientation system design - Night time PID recovery function, increases overall system yield (optional) - Night SVG function - Supports export power control - Intelligent string monitoring, smart I-V curve scan - Scan to register on SolisCloud, supports remote upgrade and control - IP66, C5 Anti-Corrosion Level - Intelligent redundant fan-cooling - Globally recognised branded componentry for longer life - AFCI protection, proactively reduces fire risk - Supports GPRS/WiFi communication with less wiring and reduced installation costs - DC side supports "Y" connector - 10/12 string inputs allow for 150%+ DC oversizing
