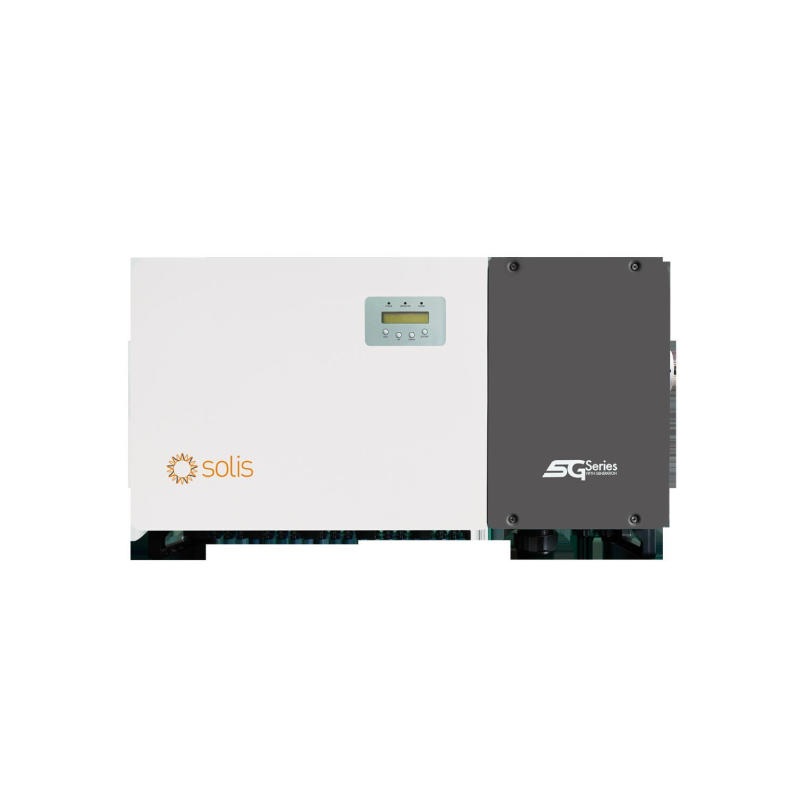

Solis S5-GC100K
Inverter Type: On-grid
MPPT: 10
Inverter Power: 100 kW
Number of phases: 3
Series Name: S5-GC(100-110)K
Series AC Power Range (kW): 100-110
Model Name: S5-GC100K
Product Warranty (Years): 5
Max. DC Voltage (V): 1000
Max. DC Current (A): 320
Strings per single MPPT: 20
Connectors: MC4
Maximum AC Power (kW): 110
Nominal AC Voltage (V): 220/380, 230/400
Maximum AC Current (A): 167.1
Nominal AC Current (A): 152/144.3
Frequency (Hz): 50/60
Power Factor: >0.99 (0.8 leading - 0.8 lagging)
Maximum Efficiency (%): 98.7
Euro Efficiency (%): 98.3
Operating Temperature Range (°C): -30 ~ +60
Protection Class: IP65
Display: LCD
Height (mm): 567
Width (mm): 1065
Depth (mm): 344.5
Weight (kg): 91
Available quantity: 60 pieces
Minimum order quantity: 5 pieces
Delivery: 10 days
10 MPPTs, max. efficiency 98.7% - > 150% DC/AC ratio - High power tracking density 100MPPT/MW - String current up to 16A, perfectly match large current bifacial modules - Night SVG function - Intelligent string monitoring, smart I-V curve scan - Remote firmware upgrade with simple operation - AFCI protection, proactively reduces fire risk - Built-in PID recovery for better module performance (optional) - Overvoltage load reduction and leakage current suppression technology, low failure rate - Globally recognised branded componentry for longer life - Power line communication (PLC) (optional) - DC side supports "Y" connector
